    VDE KEMA Certified RCCB Circuit Breaker 6kV Rated Service Impulse Withstand Voltage

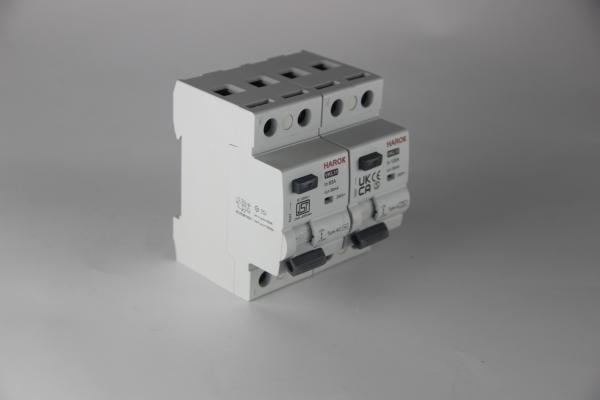

    Residual Current Circuit Breaker NF SEMKO VDE KEMA Certified, 6kV Rated Service Impulse Withstand Voltage


    VKL11 Residual Current Circuit Breaker RCCB NF SEMKO VDE KEMA




    1. General


    1.1 RCCB Function

    Control electric circuits.

    Protect people against indirect contacts and additional protection against direct contacts.

    Protect installations against fire hazard due to insulation faults.

    Residual current circuit breakers are used in housing, tertiary sector and industry.


    1.2 RCCB Selection

    Detectable wave form

    AC class

    Tripping is ensured for slowly increasing sinusoidal AC residual currents


    A class

    Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.


    ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)

    Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.

    Note: Our ASi type includes G/KV function and Si function.


    1.3 RCCB Approvals and certificates

    We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying

    with the requirements.

    1. Verification of the operating characteristic as per Seq. - D0 CL9.9

    2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16

    3. High Voltage Test as per D.3 of Annex D

    4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)

    Tripping sensitivity

    10mA - precision instrument leakage protection and bathroom use.

    30mA - additional protection against direct contact.

    100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;

    300mA/500mA - protection against indirect contacts, as well as fire hazard.

    Tripping time

    Instantaneous

    It ensures instantaneous tripping(without time-delay).

    Short time delay ASi

    (High Immunity/ Avoid nuisance tripping &blinding)

    It ensures any tripping at least 10ms.

    Selective

    It ensures total discrimination with a non selective RCD placed downstream.

    VDE KEMA Certified RCCB Circuit Breaker 6kV Rated Service Impulse Withstand Voltage


    RCCB | Residual Current Circuit Breaker


    2. Technical parameters

    StandardIEC/EN 61008-1 AS/NZS61008.1
    Electrical featuresModel No.VKL11
    Poles2P, 4P
    Rated current In16A, 25A, 32A, 40A, 63A, 80A, 100A
    Rated Sensitivity I△n10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA
    Rated voltage Ue2P: 240V 4P: 415V
    Insulation voltage Ui415V
    Rated frequency50/60 Hz
    Rated residual making and breaking capacity I△m1500A
    Short-circuit current Inc=I△c6000A, 10000A
    Type (wave form of the earth leakage sensed)AC, A, ASi, S
    break time under I△n≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type)
    Rated impulse withstand voltage(1.2/50) Uimp4kV
    Dielectric test voltage at ind. Freq. for 1 min2.5
    Pollution degree2
    Mechanical featuresElectrical life≥2000
    Mechanical life≥2000
    Fault current indicatorYes
    Terminal protection degreeIP20

    Ambient temperature (with

    daily average≤35℃)

    -25℃ to 50℃
    Storage temperate-30℃ to 70℃
    InstallationTerminal connection typeCable/Pin-type busbar
    Terminal size top/bottom for cable25-35 mm²
    18-3/18-2 AWG
    Terminal size top/bottom for busbar10/16 mm²
    18-8/18-5 AWG
    Tightening torque2.5 N·m
    22 In-Ibs.
    MountingOn DIN rail EN 60715 (35mm) by means of fast clip device
    ConnectionFrom top and bottom

    3. RCCB Outline and installation dimensions (mm)


    Product Description:

    Residual Current Circuit Breaker RCCB is an advanced EV type device, which is certified by NF SEMKO, VDE KEMA and Inmetro. It is designed to provide reliable protection against electric shock and fire caused by earth leakage current. It has a rated service impulse withstand voltage of 6kV, a rated short-circuit breaking capacity of 4kA, and a rated current of 30mA-100mA. It also has a rated residual operating current of 30mA-100mA and a rated residual non-operating current of 0.5mA-10mA. With the features of ultra safety and reliable protection, Residual Current Circuit Breaker RCCB is the perfect choice for residential and commercial use.

    Features:

    • Product Name: Residual Current Circuit Breaker RCCB
    • Rated Residual Current Off-Time: ≤0.1s
    • Rated Frequency: 50/60Hz
    • Rated Residual Operating Current: 30mA-300mA
    • Rated Current: 16A-100A
    • Certifications: NF SEMKO VDE KEMA

    Applications:

    HAROK VKL11 Residual Current Circuit Breaker Inmetro

    HAROK VKL11 Residual Current Circuit Breaker (RCCB) is an important safety device used to protect electrical circuits from overload and short circuits. This type of circuit breaker, also known as Inmetro, is capable of detecting and interrupting any residual current, thereby providing protection against electrical shocks, electric currents, and overcurrents in electrical circuits.

    The HAROK VKL11 RCCB features a rated short-circuit breaking capacity of 10kA and a rated insulation voltage of 500V. This type of circuit breaker is certified by NF, SEMKO, VDE, KEMA, ISI, and CE, and can be ordered in minimum quantities of 5000 pieces. Delivery times are typically 4-6 weeks after payment, with a maximum supply capability of 100,000 pieces per month.

    The HAROK VKL11 RCCB is a reliable and safe device, with a rated residual operating current from 30mA to 300mA and a rated current from 16A to 100A. It is also backed by the following certifications: CE, ISI, NF, SEMKO, VDE, and KEMA.

    Customization:

    Residual Current Circuit Breaker RCCB

    Brand Name: HAROK

    Model Number: VKL11

    Place of Origin: CHINA

    Certification: NF, SEMKO, VDE, KEMA, ISI, CE

    Minimum Order Quantity: 5000

    Packaging Details: PAPER CARTON

    Delivery Time: 4-6 weeks after payment

    Payment Terms: FOB NINGBO or SHANGHAI

    Supply Ability: 100,000 PCS PER MONTH

    Rated Insulation Voltage: 500V

    Rated Short-Circuit Breaking Capacity: 10kA

    Rated Ultimate Short-Circuit Breaking Capacity: 10kA

    Rated Impulse Withstand Voltage: 4kV

    Rated Service Impulse Withstand Voltage: 6kV

    Highlights:

    • Residual Current Circuit Breaker RCCB
    • Residual Current Circuit Breaker Inmetro
    • Residual Current Circuit Breaker with ISI mark

    Packing and Shipping:

    Packaging and Shipping Instructions for Residual Current Circuit Breaker RCCB

    1. Upon receipt of your Residual Current Circuit Breaker RCCB, inspect the package for any damages or missing items. Notify the shipper immediately if any damage or shortages are noted.
    2. Carefully unpack the Residual Current Circuit Breaker RCCB and all included accessories.
    3. Make sure all parts are accounted for and in good condition.
    4. After unpacking, store the Residual Current Circuit Breaker RCCB in a dry, secure and dust-free environment.
    5. Before use, check the Residual Current Circuit Breaker RCCB for any signs of damage.
    6. When shipping the Residual Current Circuit Breaker RCCB, use the original packaging or a suitable equivalent to ensure that it is adequately protected.
    7. Do not ship the Residual Current Circuit Breaker RCCB with batteries installed.
    8. Make sure to securely pack the Residual Current Circuit Breaker RCCB and label it with the appropriate shipping information.
