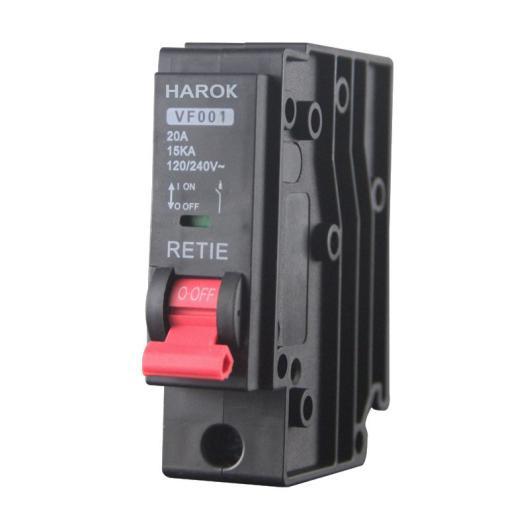

VF001 Miniature Circuit Breaker

1. General

1.1 Function

-protection of circuits against short-circuit currents

-protection of circuits against overload currents, switch

-isolation

VF001 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.

1.2 Selection

Technical data of the network at the point considered:

-short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device

-Network normal voltag

Tripping curves:

B curve (3-5In)

protection for people and big length cables in TN and IT systems.

C curves (5-10In)

protection for resistive and inductive loads with low inrush current.

2. Technical parameters

2.1

2.2 Curves

Product Description:

UL489 Circuit Breaker (MCB) is a Mini Circuit Breaker with one, two, three or four poles, which is designed to meet the UL489 standard. The poles are 1P, 1P+N, 2P, 3P, 3P+N, and 4P, and the storage temperature ranges from -25℃ to 70℃. The protection degree is up to IP20, and the product is certified by CE, SAA, SEMKO, and NF. It also has various thermo-magnetic release characteristics, including B, C, and D.

Features:

• Product Name: UL489 Circuit Breaker
• Thermo-magnetic release characteristic: B, C, D
• Storage temperature: -25℃ To 70℃
• Standards: IEC/EN 60947-2, IEC/EN 60947-2
• Rated Current: 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A
• Rated voltage Ue: 120V, 230/400V ~ 240/415V
• MCB: Mini Circuit breaker, Mini Circuit breaker

Applications:

The UL489 Circuit Breaker from HAROK is a reliable and cost-effective solution for various electrical applications. It is available in several models such as VF001, VF002, VF003, VK007, VA007, VF008 and VK009. It is manufactured in CHINA and is compliant with IEC/EN 60947-2, IEC/EN 60947-2 standards. It has a 50/60 Hz frequency rating and IP20 protection degree, which makes it ideal for a wide range of applications. The UL489 Circuit Breaker is designed to operate in temperatures ranging from -25℃ to 70℃, which makes it suitable for both indoor and outdoor applications. It is also suitable for use in low voltage distribution systems, making it an ideal solution for protecting circuits from overload and short circuit. By using a MCB, it provides a higher level of safety and reliability than conventional fuses. This ensures that the device is suitable for a wide range of applications, making it an ideal choice for any electrical system.

Technical Parameters:

Customization:

• Product Name: UL489 Circuit Breaker (MCB, MCB Switch)
• Brand Name: HAROK
• Model Number: VF001, VF002, VF003, VK007, VA007, VF008, VK009
• Place of Origin: CHINA
• Reference temperature for setting of thermal element: 30℃
• Mechanical life: 20,000
• Protection degree: IP20
• Rated Current: 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A
• Certificate: CE, SAA, SEMKO, NF
