VK007LE Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO)

1. General

VK007LE residual current operated circuit breakers with overcurrent protection (RCBO) are suitable for lines with AC 50/60Hz, rated voltage 240V/415V, rated current up to 63A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.

2. Technical parameters

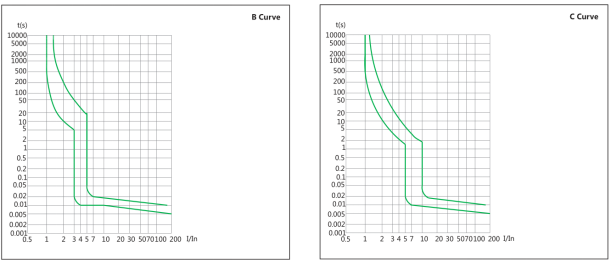

2.1 The tripping characteristic curves are as shown below.

2.2 Basic parameters

2.3 The residual current breaking times

2.4 The over-current protection characteristics

Product Description:

RCBO Type A is a Residual Current Operated Circuit Breaker with over-current protection. It is equipped with a reliable, long-lasting, and strong mechanical life of 2000. It has two connection options, from top to bottom and from bottom to top. The rated residual current operating time is 0.1 seconds or less. It is also equipped with four types of rated residual non-operating current, 0.005A, 0.015A, 0.05A, and 0.15A. Its rated voltage is AC240V. It is a reliable and effective RCBO Circuit Breaker and provides a safe and secure environment.

Features:

• Product Name: RCBO Type A
• Rated voltage Ue: AC240V
• Frame size rated current Inm: 50A
• Rated Breaking Capacity: 6kA
• Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A
• Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In

Applications:

RCBO Type A, a Residual Current Operated Circuit Breaker with over-current protection, is a reliable and secure electrical protection device. Developed by HAROK, RCBO Type A features a wide range of models, including VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03 and VK007LE, and is manufactured in CHINA. It provides a Rated Residual Current Operating Time of ≤0.1s, and is classified by Type of Instantaneous Tripping as Type B: (3 ~ 5) In, and Type C: (5 ~ 10) In. The Rated Frequency is 50/60Hz, and the Rated Residual Operating Current is 0.01A, 0.03A, 0.1A and 0.3A. The Rated Residual Current On-state is ≤0.2mA. RCBO Type A is an ideal choice for ensuring safety and stability in your electrical systems.
