VFL001 Residual Current Device (RCD) Type A Type AC Type ASi
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection
against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary
sector and industry.
1.2 Selection
Detectable wave form
| RCD Type | Suitable for electrical networks with |
|---|
| Pulsated DC current | Harmonics | Switching surges |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class RCD may not work satisfactorily in electrical network
distributed by harmonics & switching transients and may give
nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual
currents
A class
Tripping is ensured for sinusoidal AC residual currents and for
pulsed DC residual currents, whether applied suddenly or increasing
slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to
unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents
but also for pulsed DC residual currents whether applied suddenly
or increasing slowly. S, G/SI type with filters against spurious
tripping caused by harmonics and transient surges. With the impact
of 8/20us surge 3000A, this high immunity RCCB will still be in
stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine
tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0
CL9.9
2. Verification of the operation of the test device at the limits
of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time
as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula
I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire
hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed
downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 |
| Electrical features | Model No. | VFL001 |
| Poles | 2P, 4P |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA |
| Rated voltage Ue | 2P: 240V 4P: 415V |
| Insulation voltage Ui | 415V |
| Rated frequency | 50/60 Hz |
| Rated residual making and breaking capacity I△m | 1500A |
| Short-circuit current Inc=I△c | 6000A, 10000A |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 |
| Pollution degree | 2 |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 |
| Fault current indicator | Yes |
| Terminal protection degree | IP20 |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ |
| Storage temperate | -30℃ to 70℃ |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² |
| 18-3/18-2 AWG |
| Terminal size top/bottom for busbar | 10/16 mm² |
| 18-8/18-5 AWG |
| Tightening torque | 2.5 N·m |
| 22 In-Ibs. |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |

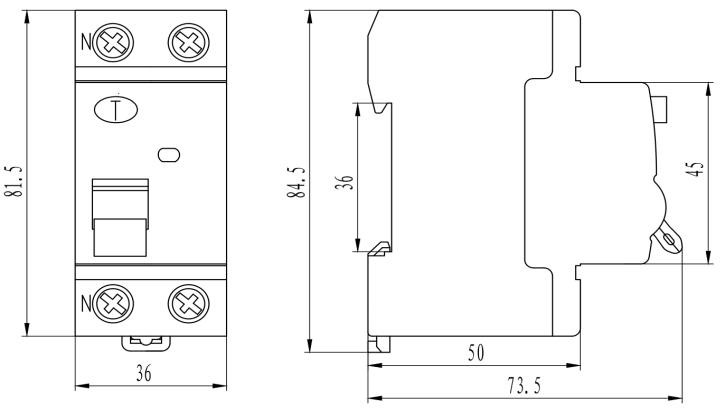

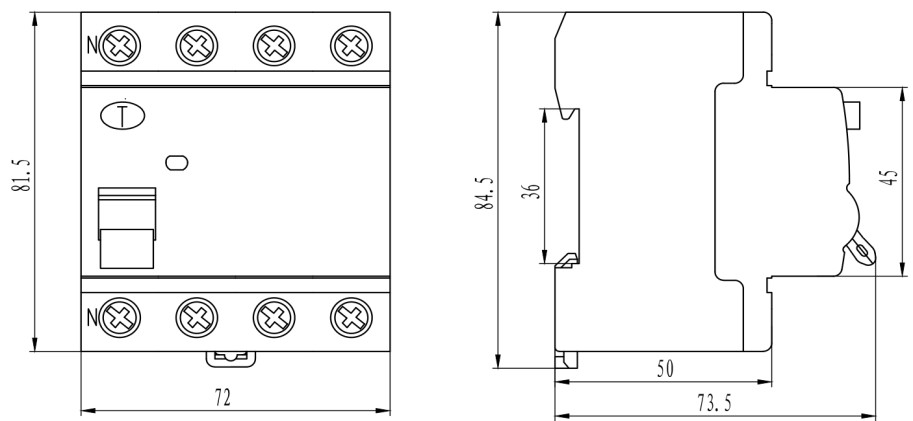

3. Outline and installation dimensions (mm)
