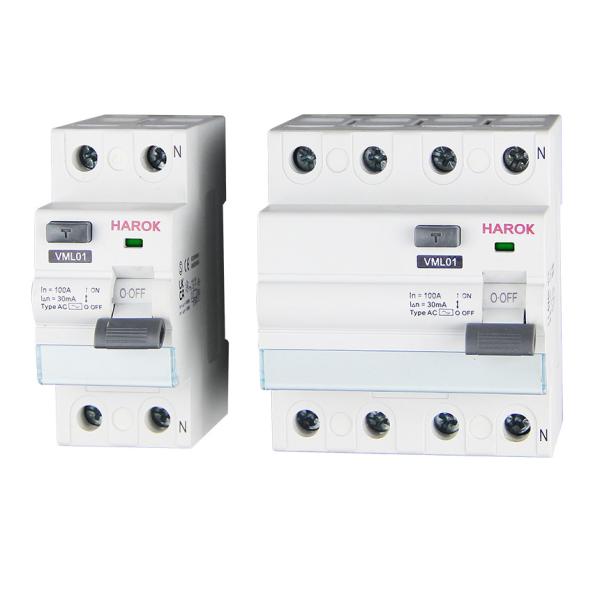

    VML01 Earth Leakage Circuit Breaker With Inmetro Certificate

    Ask Lasest Price
    Brand Name : HAROK
    Model Number : VML01
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    VML01 Earth Leakage Circuit Breaker With Inmetro Certificate

    VML01 Earth Leakage Circuit Breaker Inmetro


    1. General


    1.1 Function

    Control electric circuits.

    Protect people against indirect contacts and additional protection against direct contacts.

    Protect installations against fire hazard due to insulation faults.

    Residual current circuit breakers are used in housing, tertiary sector and industry.


    1.2 Selection


    Detectable wave form

    ELCB TypeSuitable for electrical networks with
    Pulsated DC currentHarmonicsSwitching surges
    AC CLASSNoNoNo
    A CLASSYesNoNo
    S, ASi CLASSYesYesYes

    A Class ELCB may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.


    AC class

    Tripping is ensured for slowly increasing sinusoidal AC residual currents


    A class

    Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.


    ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)

    Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.

    Note: Our ASi type includes G/KV function and Si function.


    1.3 Approvals and certificates

    We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying

    with the requirements.

    1. Verification of the operating characteristic as per Seq. - D0 CL9.9

    2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16

    3. High Voltage Test as per D.3 of Annex D

    4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)

    Tripping sensitivity

    10mA - precision instrument leakage protection and bathroom use.

    30mA - additional protection against direct contact.

    100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;

    300mA/500mA - protection against indirect contacts, as well as fire hazard.

    Tripping time

    Instantaneous

    It ensures instantaneous tripping(without time-delay).

    Short time delay ASi

    (High Immunity/ Avoid nuisance tripping &blinding)

    It ensures any tripping at least 10ms.

    Selective

    It ensures total discrimination with a non selective ELCB(RCCB) placed downstream.

    VML01 Earth Leakage Circuit Breaker With Inmetro Certificate


    ELCB | Electrical Leakage Circuit Breaker


    2. Technical parameters

    StandardIEC/EN 61008-1 AS/NZS61008.1
    Electrical featuresModel No.VML01
    Poles2P, 4P
    Rated current In16A, 25A, 32A, 40A, 63A, 80A, 100A
    Rated Sensitivity I△n10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA
    Rated voltage Ue2P: 240V 4P: 415V
    Insulation voltage Ui415V
    Rated frequency50/60 Hz
    Rated residual making and breaking capacity I△m1500A
    Short-circuit current Inc=I△c6000A, 10000A
    Type (wave form of the earth leakage sensed)AC, A, ASi, S
    break time under I△n≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type)
    Rated impulse withstand voltage(1.2/50) Uimp4kV
    Dielectric test voltage at ind. Freq. for 1 min2.5
    Pollution degree2
    Mechanical featuresElectrical life≥2000
    Mechanical life≥2000
    Fault current indicatorYes
    Terminal protection degreeIP20

    Ambient temperature (with

    daily average≤35℃)

    -25℃ to 50℃
    Storage temperate-30℃ to 70℃
    InstallationTerminal connection typeCable/Pin-type busbar
    Terminal size top/bottom for cable25-35 mm²
    18-3/18-2 AWG
    Terminal size top/bottom for busbar10/16 mm²
    18-8/18-5 AWG
    Tightening torque2.5 N·m
    22 In-Ibs.
    MountingOn DIN rail EN 60715 (35mm) by means of fast clip device
    ConnectionFrom top and bottom

    3. Outline and installation dimensions (mm)


    ELCB | Electrical Leakage Circuit Breaker

    Product Description:

    ELCB Earth Leakage Circuit Breaker is a reliable electrical protection device designed to protect people from electric shock. It is designed with advanced technology to detect current leakage and to trip the circuit and shut off the power supply when the leakage reaches a certain level. The rated current ranges from 6A-100A, and the rated sensitivity is 30mA/100mA/300mA. The ELCB can operate in an environment with temperature ranging from -25℃ to +50℃. It is applicable to the rated voltage of 240V/415V AC. The ELCB is a perfect solution to ensure the safety of people and equipment.

    • Product Name: ELCB Earth Leakage Circuit Breaker
    • ELCB Type A Type AC Type ASi
    • Operating Environment Temperature: -25℃~+50℃
    • Trip Time: ≤0.1s
    • Rated Breaking Capacity: 10KA
    • Certificate: NF, SEMKO, VDE, KEMA

    Features:

    a. we guarantee 5 years' warranty;

    b. The material of ELCB shell is PA66 instead of bakelite (bakelite shell is easily broken when drop onto ground)

    c. Bottom lock material is PA66 instead of iron with spring (iron lock with spring is easily broken and not nice looking)

    d. Our quality control standard is very strict. We have perfect test equipment in our factory to tests products during production, all the ELCB will be tested and checked one by one at least 5 times before delivery.

    e. VORAX has been certified by the ISO9001 Quality Management System, and all products produced in VORAX are kept in strict accordance with international IEC/EN standards.

    f. VORAX products have gained variety of international certifications, including SAA, CB, CE, NF, SEMKO etc.

    We are the only Chinese company who have ISI certificate for India.

    We are the one of two companies who have NF certificate for France.


    So if u buy our ELCB, the good quality of products is 100% guaranteed and you won't get any trouble with certificate issues. The price we quote is worth.

    Applications:

    HAROK VFL001 ELCB Earth Leakage Circuit Breaker is an Inmetro certified device that is designed to protect the electrical system from overload and short circuits. It is rated with a voltage of 240V/410V, and a sensitivity of 30mA/100mA/300mA. This ELCB has a robust construction made of PA66 material; its dimensions depend on the model. It operates in a temperature range of -25℃ to +55℃ and can be used in any environment. Furthermore, it has been certified by NF, SEMKO, VDE, and KEMA. The minimum order quantity is 1000, and it is usually delivered within 4-6 weeks after payment. It can be purchased through FOB NINGBO or SHANGHAI and can be delivered in paper carton packaging. HAROK can supply up to 100,000 PCS per month.

    Technical Parameters:

    ParameterValue
    ELCB TypeType A Type AC Type ASi
    Rated Current6A-100A
    DimensionAccording To The Product Model
    Rated Voltage240V/415V
    Installation MethodFixed/Plug-in
    Operating Environment Temperature-25℃~+50℃
    CertificateNF, SEMKO, VDE, KEMA
    Insulation Voltage≥2KV
    Rated Breaking Capacity10KA
    Rated Sensitivity30mA/100mA/300mA/500mA
    Rated Frequency50/60Hz

    Support and Services:

    ELCB Earth Leakage Circuit Breaker Technical Support and Services

    We offer comprehensive technical support and services for our ELCB Earth Leakage Circuit Breaker product line. Our expert technicians are available to assist with installation, maintenance, and troubleshooting.

    We provide a wide range of services including:

    • Product installation and setup
    • Product maintenance and repair
    • Troubleshooting and diagnostic assistance
    • Software and firmware updates
    • Replacement parts and accessories

    We also offer extended warranties and our team is available 24/7 for emergency support. If you have any questions or need assistance with your ELCB Earth Leakage Circuit Breaker product, please don't hesitate to contact us.

    Packing and Shipping:

    ELCB Earth Leakage Circuit Breaker Packaging and Shipping

    The ELCB Earth Leakage Circuit Breaker should be packaged in a strong cardboard box. The box should be securely sealed with tape. The product should be protected with bubble wrap or other appropriate packing material. The box should be clearly labeled with the product name and the shipping address.

    The product should be shipped in a timely manner. Depending on the size and destination, the product should be shipped using the most cost-effective method, such as air, rail, or truck. The shipment should be tracked to ensure that it arrives on time and in good condition.
