VFL001 Earth Leakage Circuit Breaker(ELCB) Type A Type AC Type ASi
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection
against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary
sector and industry.
1.2 Selection
Detectable wave form
| ELCB Type | Suitable for electrical networks with |
|---|
| Pulsated DC current | Harmonics | Switching surges |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class ELCB may not work satisfactorily in electrical network
distributed by harmonics & switching transients and may give
nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual
currents
A class
Tripping is ensured for sinusoidal AC residual currents and for
pulsed DC residual currents, whether applied suddenly or increasing
slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to
unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents
but also for pulsed DC residual currents whether applied suddenly
or increasing slowly. S, G/SI type with filters against spurious
tripping caused by harmonics and transient surges. With the impact
of 8/20us surge 3000A, this high immunity RCCB will still be in
stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the ELCB has been tested for the following routine
tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0
CL9.9
2. Verification of the operation of the test device at the limits
of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time
as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula
I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire
hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective ELCB(RCCB)
placed downstream.
ELCB | Electrical Leakage Circuit Breaker
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 |
| Electrical features | Model No. | VFL001 |
| Poles | 2P, 4P |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA |
| Rated voltage Ue | 2P: 240V 4P: 415V |
| Insulation voltage Ui | 415V |
| Rated frequency | 50/60 Hz |
| Rated residual making and breaking capacity I△m | 1500A |
| Short-circuit current Inc=I△c | 6000A, 10000A |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 |
| Pollution degree | 2 |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 |
| Fault current indicator | Yes |
| Terminal protection degree | IP20 |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ |
| Storage temperate | -30℃ to 70℃ |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² |
| 18-3/18-2 AWG |
| Terminal size top/bottom for busbar | 10/16 mm² |
| 18-8/18-5 AWG |
| Tightening torque | 2.5 N·m |
| 22 In-Ibs. |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |

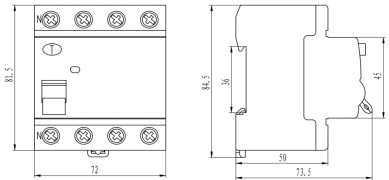

3. Outline and installation dimensions (mm)
Product Description:
ELCB Earth Leakage Circuit Breaker is a safety device used to
protect people and property from electric shock and fire caused by
earth leakage. It provides overcurrent protection, sensitive to
earth leakage current, and can quickly turn off the circuit within
0.1s to protect people and property from electric shock.
Our ELCB has below advantages:
a. we guarantee 5 years' warranty;
b. The material of RCCB shell is PA66 instead of bakelite (bakelite
shell is easily broken when drop onto ground)
c. Bottom lock material is PA66 instead of iron with spring (iron
lock with spring is easily broken and not nice looking)
d. Our quality control standard is very strict. We have perfect
test equipment in our factory to tests products during production,
all the ELCB will be tested and checked one by one at least 5 times
before delivery.
e. VORAX has been certified by the ISO9001 Quality Management
System, and all products produced in VORAX are kept in strict
accordance with international IEC/EN standards.
f. VORAX products have gained variety of international
certifications, including SAA, CB, CE, NF, SEMKO etc.
We are the only Chinese company who have ISI certificate for India.
We are the one of two companies who have NF certificate for France.
So if u buy our ELCB, the good quality of products is 100%
guaranteed and you won't get any trouble with certificate issues.
The price we quote is worth.
Applications:
HAROK VFL001 Earth Leakage Circuit Breaker (ELCB) is the perfect
choice for reliable, safe and economic protection of electrical
appliances and circuits against overload and short circuit. It is
designed and developed to be compliant with NF, SEMKO, VDE and KEMA
standards. With its high-quality PA66 material and insulation
voltage of ≥2KV, ELCB Type A Type AC Type ASi can provide excellent
protection grade of IP20. The minimum order quantity is 1000 and
the delivery time is 4-6 weeks after payment. It is available in
both fixed and plug-in installation methods. We guarantee a supply
ability of 100,000 PCS per month with FOB NINGBO or SHANGHAI
payment terms.
Technical Parameters:
| Parameter | Description |
|---|
| Insulation Voltage | ≥2KV |
| Protection Grade | IP20 |
| Trip Time | ≤0.1s |
| Material | PA66 |
| Rated Breaking Capacity | 10KA |
| Rated Voltage | 240V/415V |
| Dimension | According To The Product Model |
| Rated Current | 6A-100A |
| Rated Frequency | 50/60Hz |
Customization:
HAROK VFL001 Earth Leakage Circuit Breaker provides the highest
level of protection for your electrical needs. It is certified with
NF, SEMKO, VDE, and KEMA. The minimum order quantity is 1000
pieces. The packaging details include paper carton. The delivery
time is 4-6 weeks after payment. The payment terms are FOB NINGBO
or SHANGHAI. The supply ability is 100,000 PCS PER MONTH. It has an
IP20 protection grade and is made with PA66 material. The rated
sensitivity is 30mA/100mA/300mA. The operating environment humidity
is ≤95%RH. The rated voltage is 240V/415V.
Packing and Shipping:
Packaging and Shipping for ELCB Earth Leakage Circuit Breaker:
- Packaged in a protective cardboard box.
- Inner packaging made of bubble wrap.
- Each unit will be tested and inspected before shipping.
- Packaged with an instruction manual.
- Shipment will be made through a reliable courier service.
