VKL11RCD Type B+

• General

1.1 Function

VKL11B RCD and VKL11B+ RCD is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.

Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.

Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.

They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.

1.2 Selection

Detectable wave form

Type B

Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.

Type B+

Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA

Tripping sensitivity

30mA - additional protection against direct contact.

100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide

protection against indirect contacts;

300mA - protection against indirect contacts, as well as fire hazard.

Tripping time

Instantaneous It ensures instantaneous tripping(without time-delay).

Short time delay

Selective (time delay)

1.3 Approvals and certificates

• Technical parameters

• Special features regarding the use of SIQUENCE universal current-sensitive residual current device (Type B and Type B+)
  • Applications

3.1 Typical applications that are vulnerable to smooth DC residual currents:

- Frequency converters with a three-phase connection

- Medical equipment such as X-ray equipment or CT machines

- Photovoltaic or UPS systems

- Connection points (wall boxes, charging stations) for electric vehicles

- Elevator controllers

- Pipeline trace heating

- Test setups in laboratories

- Construction sites in accordance with BGI 608 information leaflet (Electronic equipment

on construction sites)

- Charging stations for battery-powered forklift trucks

- Cranes of all kinds

- Mixing plants if relevant loads are connected

- Variable-speed machine tools, such as milling and grinding machines or lathes

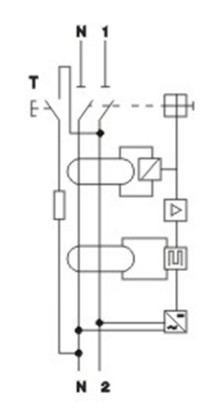

• Wiring diagrams

• Tripping characteristics

.B type

• Dimensions (mm)
•

Product Description:

RCD TYPE B is a high immunity Residual Current Device (RCD) designed to provide reliable protection against electric shock and fire hazards. It is a super immunised RCD with rated residual operating current of 30mA, 100mA, 300mA, 500mA, and rated conditional short-circuit current Inc of 10kA. This product is designed with IP20 protection degree, providing users with the highest safety protection. It is the perfect choice for those who value safety.

Features:

• Product Name: RCD TYPE B
• Rated Voltage: 2P: 230/240V AC; 4P: 400/415V AC
• Rated Frequency: 50Hz/60Hz
• Rated Insulation Voltage: 500V
• Rated Residual Operating Current: 30mA, 100mA, 300mA, 500mA
• Super immunised Residual Current Device to quickly detect and disconnect the electric circuit in case of a fault
• Ideal for RESIDUAL CURRENT DEVICE protection against electric shock

Applications:

HAROK VKL11 Residual Current Device (RCD TYPE B) helps to protect people from electric shock and fire. This RCD is CE, CB, NF, ISI, SEMKO certified with a minimum order quantity of 5000. The packaging details include paper carton, and the delivery time is 4-6 weeks. The payment terms are FOB NINGBO or SHANGHAI. The supply ability is 100,000 PCS PER MONTH. The rated insulation voltage is 500V and the rated residual operating time is 0.03s with rated current of 16A, 25A, 32A, 40A, 63A, 80A, 100A. This Super immunised Residual Current Device (RCD TYPE B) has a rated impulse withstand voltage of 4kV.

Technical Parameters:

Customization:

Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: CE, CB, NF, ISI, SEMKO
Minimum Order Quantity: 5000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Payment Terms: FOB NINGBO or SHANGHAI
Supply Ability: 100,000 PCS PER MONTH
Rated current In: 16A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Frequency: 50Hz/60Hz
Rated Residual Operating Current: 30mA, 100mA, 300mA, 500mA
Rated Impulse Withstand Voltage: 4kV
Rated Residual Operating Time: 0.03s

Packing and Shipping:

Packaging and Shipping of RCD TYPE B:

• The RCD TYPE B shall be packed in an individual box containing the product and its necessary components.
• The box shall be further packed in a corrugated cardboard carton.
• The carton shall be marked with the product type, quantity, and other details relevant to the product.
• The product must be shipped with appropriate padding and protection.
