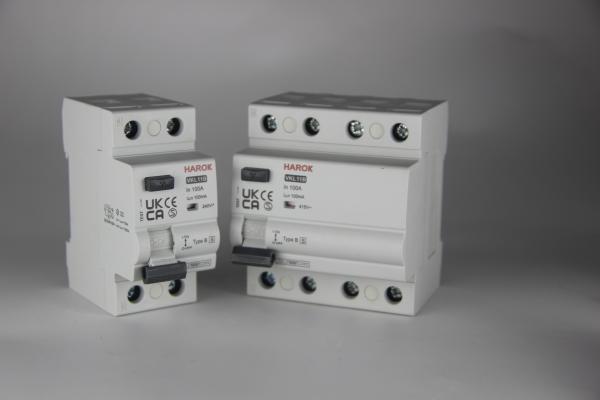

    High Immunity RCD Type B

    High immunityRCD Type B

    • General

    1.1 Function

    VKL11B RCD and VKL11B+ RCD is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.

    Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.

    Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.

    They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.


    1.2 Selection

    Detectable wave form

    Type B

    Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.

    Type B+

    Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA

    Tripping sensitivity

    30mA - additional protection against direct contact.

    100mA - co-ordinated with the earth system according to the formula IΔn<50/R, to provide

    protection against indirect contacts;

    300mA - protection against indirect contacts, as well as fire hazard.

    Tripping time

    Instantaneous It ensures instantaneous tripping(without time-delay).

    Short time delay

    Selective (time delay)


    1.3 Approvals and certificates


    • Technical parameters
    TypeBB+
    Electrical
    Design according toIEC/EN 62423, IEC/EN 61008-1, OVE E8601
    VDE 0664-400
    Current test marks as printed onto the device
    Rated voltage Un

    2P: 230/240V AC

    4P: 400/415V AC

    Rated frequency fn50/60Hz
    Mode of operation

    "A type functionality: voltage independent

    B and B+ type functionality: voltage dependent"

    Operation voltage electronic50 – 264V AC
    Voltage range test circuit

    2P: 184 – 264V AC

    4P: 184 – 440V AC

    Rated current In16A, 25A, 32A, 40A, 63A, 80A, 100A

    Rated residual

    operating

    current I△n

    Instantaneous30mA, 100mA, 300mA, 500mA30mA, 100mA, 300mA
    K-short time delayed (G, ASi)30mA, 100mA, 300mA, 500mA30mA, 100mA, 300mA
    S- selective100mA, 300mA, 500mA100mA, 300mA
    SensitivityAlternating, pulsed and smooth direct currents
    High frequency up to 1 kHZHigh frequency up to 20kHZ
    Rated insulation voltage Ui500 V
    Rated impulse withstand voltage Uimp4 kV (1.2/50μs)
    Rated conditional short-circuit current Inc10 kA
    Rated making and breaking capacity Im1500 A
    Peak withstand current

    3 kA (8/20 μs) surge current proof

    5 kA (8/20 μs) surge current proof for type S

    Electrical isolation> 4 mm contact space

    Maximum back-up fuse

    In = 16-100A

    Short circuit and overload protection

    100 A gG/gL

    Endurance

    (operating cycles)

    electrical components≥ 2000
    mechanical components≥ 4000
    Mechanical
    Degree of protectionIP20
    Upper and lower terminalsopen mounted / lift terminals
    Terminal capacity1 - 25 mm2
    Terminal torque2 - 2.5 Nm
    Busbar thickness0.8 - 2 mm
    Operating temperature-25°C ... +55°C
    Storage- and transport temperature-40°C ... +70°C
    Resistance to climatic conditionsIEC/EN 61008
    Contact position indicatormechanical red / green
    Supply possibilitytop or bottom
    Mounting positionany

    • Special features regarding the use of SIQUENCE universal current-sensitive residual current device (Type B and Type B+)
      • Applications

    3.1 Typical applications that are vulnerable to smooth DC residual currents:

    - Frequency converters with a three-phase connection

    - Medical equipment such as X-ray equipment or CT machines

    - Photovoltaic or UPS systems

    - Connection points (wall boxes, charging stations) for electric vehicles

    - Elevator controllers

    - Pipeline trace heating

    - Test setups in laboratories

    - Construction sites in accordance with BGI 608 information leaflet (Electronic equipment

    on construction sites)

    - Charging stations for battery-powered forklift trucks

    - Cranes of all kinds

    - Mixing plants if relevant loads are connected

    - Variable-speed machine tools, such as milling and grinding machines or lathes


    • Wiring diagrams

    High Immunity RCD Type BHigh Immunity RCD Type B


    • Tripping characteristics

    .B type

    High Immunity RCD Type B


    • Dimensions (mm)

    Product Description:

    RCD TYPE B is a Residual Current Device that provides protection up to the IP20 degree. Its rated voltage is 2P: 230/240V AC; 4P: 400/415V AC. The rated storage temperature is -40℃~+70℃ and the rated current is 30mA. The rated residual operating current is also 30mA. With these features, RCD TYPE B is a reliable and effective Residual Current Device for various applications.

    Features:

    • Product Name: RCD TYPE B
    • High immunity RCD
    • Rated Impulse Withstand Voltage: 4kV
    • Rated current In: 16A, 25A, 32A, 40A, 63A, 80A, 100A
    • Rated conditional short-circuit current Inc: 10kA
    • Rated Residual Operating Current: 30mA

    Applications:

    HAROK VKL11 RCD TYPE B, a Residual Current Device, is a reliable protection device that can detect and trip off the electrical circuit when an imbalance current is flowing. It is manufactured in China and certified with CE, CB, NF, ISI, and SEMKO, with a minimum order quantity of 5000. It is packed in paper carton and the delivery time is 4-6 weeks after payment. The payment terms are FOB NINGBO or SHANGHAI, and the supply ability is 100,000 PCS PER MONTH.The rated residual operating current I△n is 30mA, 100mA, 300mA, 500mA, and the operating temperature range is -25℃~+55℃. It is also rated impulse withstand voltage of 4kV and rated frequency of 50Hz/60Hz. Moreover, the rated storage temperature is -40℃~+70℃.

    Technical Parameters:

    Product NameRCD TYPE B
    Rated Frequency50Hz/60Hz
    Rated Voltage2P: 230/240V AC; 4P: 400/415V AC
    Rated Current30mA
    Rated Insulation Voltage500V
    Rated Conditional Short-Circuit Current Inc10kA
    Rated Impulse Withstand Voltage4kV
    Rated Storage Temperature-40℃~+70℃
    Operating Temperature-25℃~+55℃
    Rated Residual Operating Time0.03s

    Customization:

    RCD TYPE B - HAROK VKL11

    Introducing the RCD TYPE B from HAROK, model VKL11. This Super Immunised Residual Current Device, or RESIDUAL CURRENT DEVICE, is designed to provide an additional level of safety for your electrical systems. It is a two-pole or four-pole device with a rated voltage of 2P: 230/240V AC and 4P: 400/415V AC respectively, and a rated residual operating current of 30mA.

    The device has a rated conditional short-circuit current Inc of 10kA and an operating temperature of -25℃~+55℃. Our RCD TYPE B conforms to all necessary certifications, including CE, CB, NF, ISI, and SEMKO. With a minimum order quantity of 5000, the product is shipped in a paper carton and can be delivered within 4-6 weeks after payment.

    We have a monthly supply ability of 100,000 PCS and accept payment terms of FOB NINGBO or SHANGHAI. Buy the RCD TYPE B from HAROK today and enjoy the highest quality of safety for your electrical systems.

    Packing and Shipping:

    RCD TYPE B packaging and shipping:

    • Packaging: RCD TYPE B is packaged in a sealed polyethylene bag with a moisture barrier.
    • Shipping: RCD TYPE B is shipped in an outer carton of double cardboard with the necessary cushioning material.
